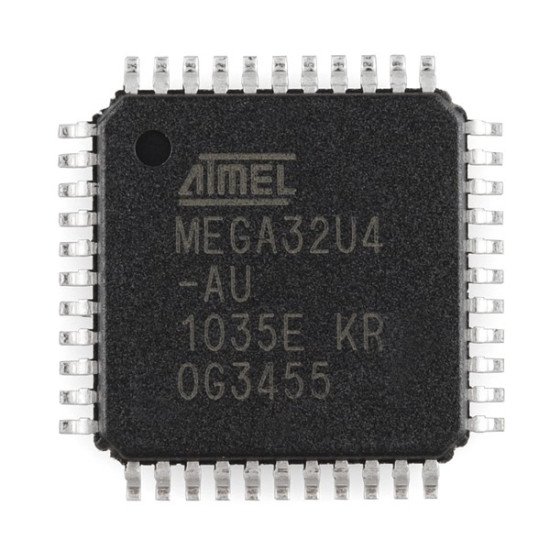

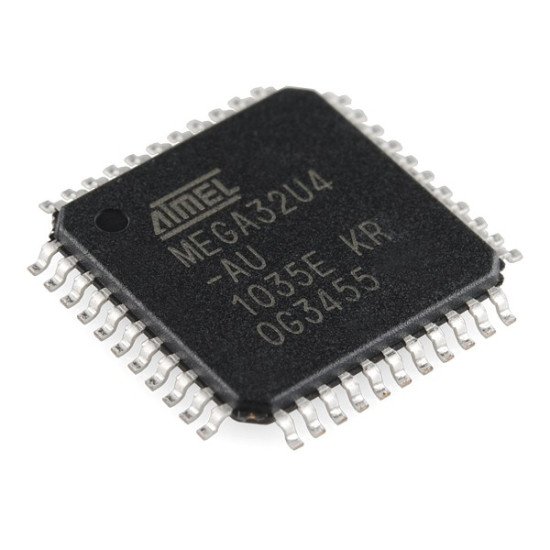

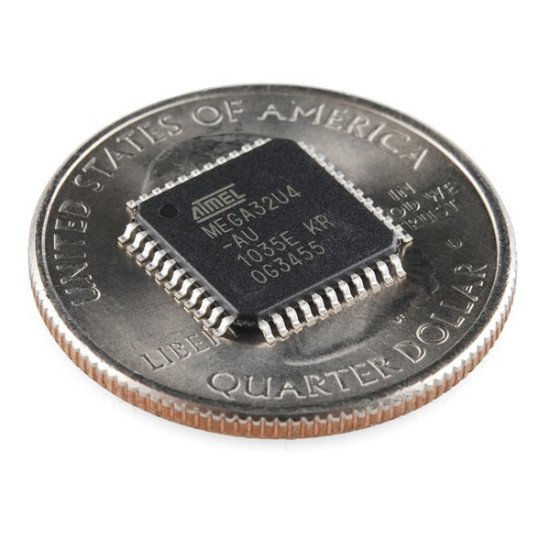

ATMEL ATMEGA32U4-AUR 8 Bit Microcontroller
- Stock: 24
- Marque: Farnell
- Modèle: DZD000291
- Poids: 15.00g
- Dimensions: 12.00mm x12.00mm x3.00mm
1 200,00DA
H.T :1 200,00DA
Aperçu du produit
The ATMEGA32U4-AUR is a low-power 8-bit AVR RISC-based Microcontroller features 1kb EEPROM, USB 2.0 full-speed/low speed device, 12-channel 10-bit A/D-converter and JTAG interface for on-chip-debug. The device achieves up to 16 MIPS throughput at 16MHz, 2.7 to 5.5V operation. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.
- High-performance, Low-power AVR® 8-Bit Microcontroller
- Advanced RISC Architecture
- Non-volatile Program and Data Memories
- JTAG (IEEE® Standard 1149.1 Compliant) Interface
- USB 2.0 Full-speed/Low Speed Device Module with Interrupt on Transfer Completion
- Power-on Reset and Programmable Brown-out Detection
- Internal 8MHz Calibrated Oscillator
- Internal Clock Prescaler and On-the-fly Clock Switching (Int RC/Ext Osc)
- External and Internal Interrupt Sources
- Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby Sleep Modes
Applications
Industrial; Automation & Process Control; Sensing & Instrumentation; Test & Measurement; Computers & Computer Peripherals
